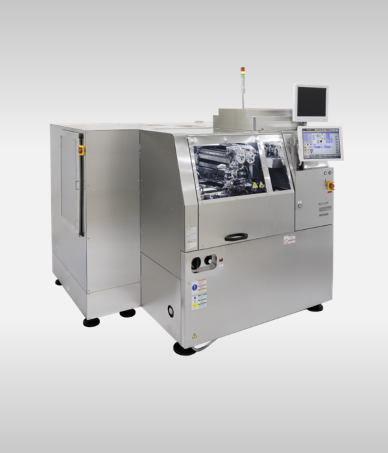

Flip Chip Bonder MD-P300HS
Item title
New flip chip bonder that improves semiconductor manufacturing productivity and realizes high-quality and high-precision bonding
Item body
Features
- Low-temperature bonding by ultrasonic technology reduces damage to devices and significantly reduces process time.
- The post-bonding process can be introduced at low cost due to compatibility with conventional equipment and materials.
- Improved bonding accuracy of ultrasonic technology from ±5 μm to ±3 μm enables higher performance and thinner semiconductor packages such as FCBGA, FCCSP, and optical communication devices.
- Real-time monitoring (Bond force, voltage/current/power, impedance, bump crush height, etc.) enables stable quality control by detecting abnormalities in the bonding process.
Media
Media
Item body
「フリップチップボンダー MD-P300」 カタログダウンロード
「フリップチップボンダー MD-P300」 詳細資料ダウンロード
資料のダウンロードには会員登録が必要です。
会員登録後は弊社Webサイト上の資料を全て閲覧できます。
Media
Background colour
Grey
Section intro title
Features and Benefits of “Flip-chip Bonder MD-P300HS”
Item title
１．Improved productivity by ultrasonic bonding
Item body

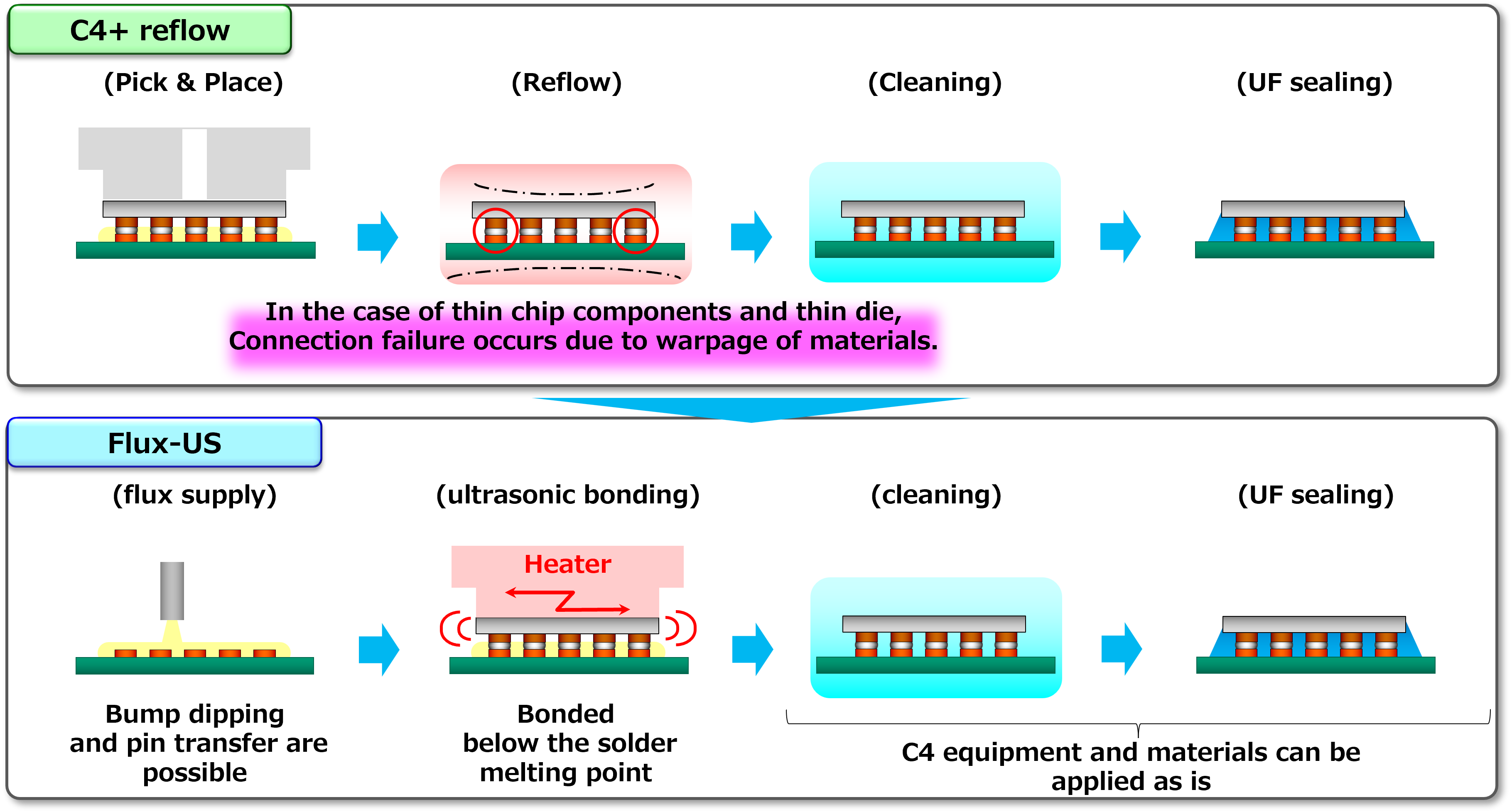

- Ultrasonic technology enables bonding at low temperatures to reduce device damage and warpage, while reducing the process time from more than 10 seconds※1in the thermocompression bonding method to less than 2 seconds to ensure quality.
- Conventional C4 equipment and materials can be used in the post-bonding process, enabling low-cost installation.
※1 Evaluation data using conventional MD-P300 (NM-EFF1C)
Media
Behaviour state
Lightbox triggered by Thumbnail
Media
Item title
２．Improved bonding accuracy
Item body
- The bonding accuracy of conventional ultrasonic technology has been improved from ±5 μm to ±3 μm to meet the needs for higher performance and thinner packaging of next-generation semiconductors such as FCBGA (flip-chip ball grid array), FCCSP (flip-chip chip size package), and optical communication devices.
Media
Media
Band title
３．Visualization of bonding quality
Band body

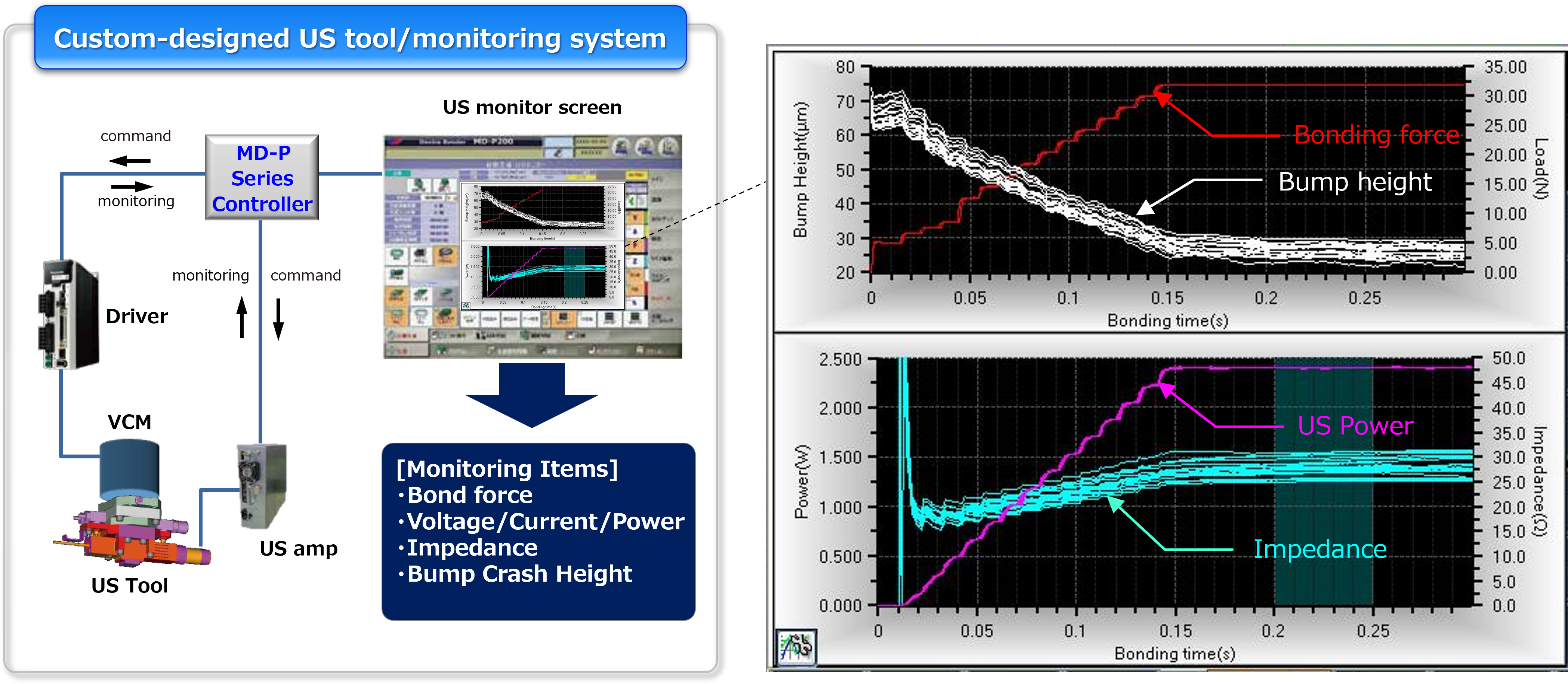

- Stable quality control is achieved with the ability to constantly monitor conditions during bonding and to monitor process abnormalities such as bond force, voltage/current/power, impedance and bump crush height in real time.
Media
Media
Band body
Background colour
White
Section intro title
Exhibition and Seminar Information
Column items
Column body
Information on current seminars and exhibitions is compiled and posted here. Information on past seminars and exhibitions is also available.
