PSX307 is a parallel plate plasma cleaner for PCBs with automatic transfer. Loader/unloader and in-line specifications can be selected. One of the following 2 models can be selected depending on the PCB dimensions.

S type PCB dimensions: L 50 mm × W 20 mm to L 250 mm × W 75 mm
M type PCB dimensions: L 50 mm × W 20 mm to L 330 mm × W 120 mm

Features (PSX307 series)

• Chamber configuration that achieves both in-plane uniformity and etching rate
• Our original lifting unit can handle PCBs that are thin and warped and PCBs with components on the backside

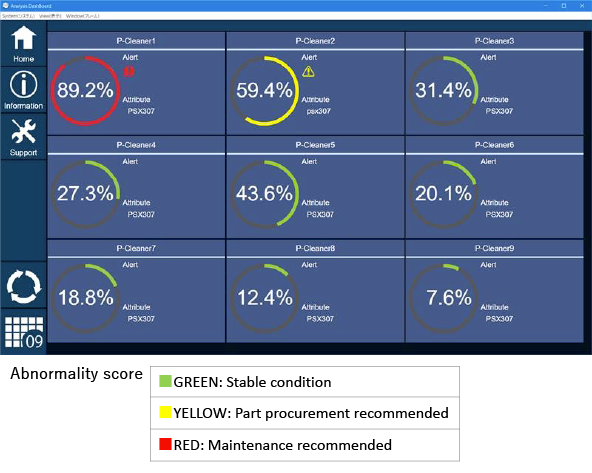

• PFSC original plasma monitor function avoids abnormal discharge and enables damage-free processing
• Traceability is ensured due to online operation

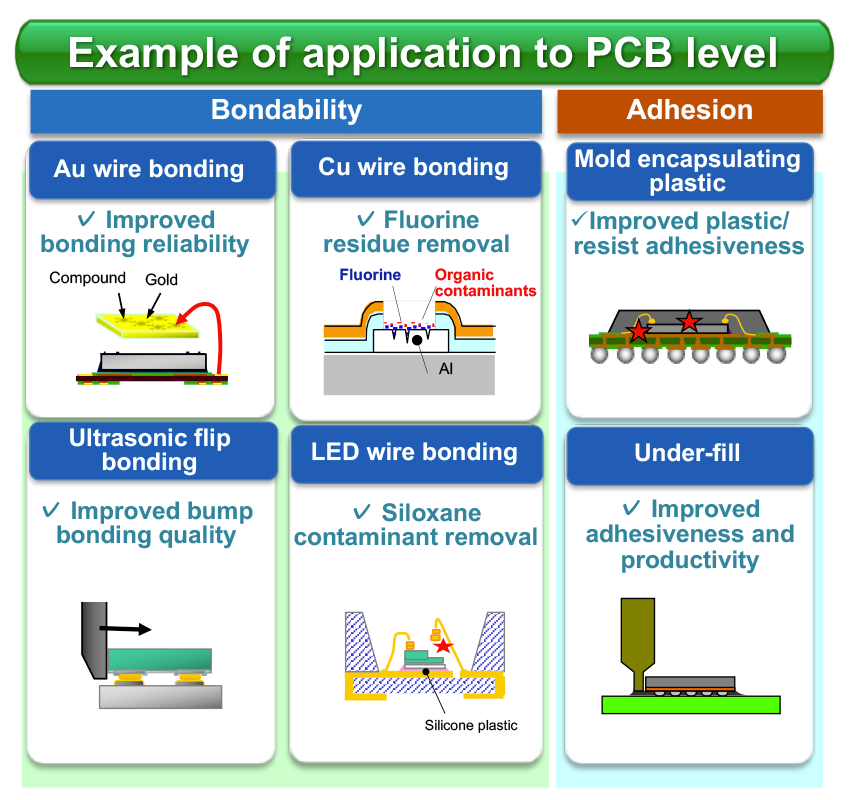

Application examples

• Improved bondability for wire bonding and flip-chip bonding
• Improved mold adhesiveness and under-fill wettability
