New feeder that greatly reduces working time by automating parts supply work in the SMT process
- Automates the process of setting new tape parts, reduces approximately 60 seconds including pre-processing.（Current feeder ITF: approximately 90 seconds → Auto Setting Feeder ASF: approximately 30 seconds）
- Realized automatic loading of next parts by optional Loading Unit
（Eliminates splicing work, and saves its work time）
- Dramatically eliminates the short time breakdown caused by tape supply part

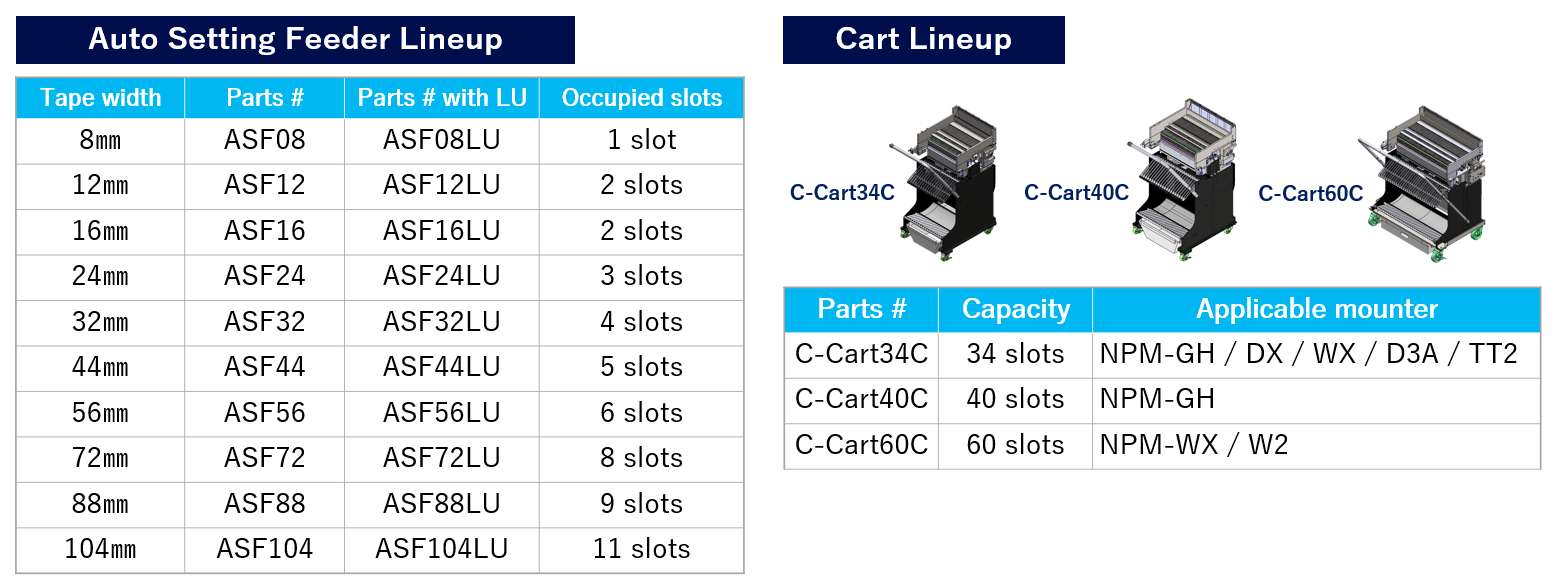

- Supports 8~104 mm width tape parts (Paper, Emboss)

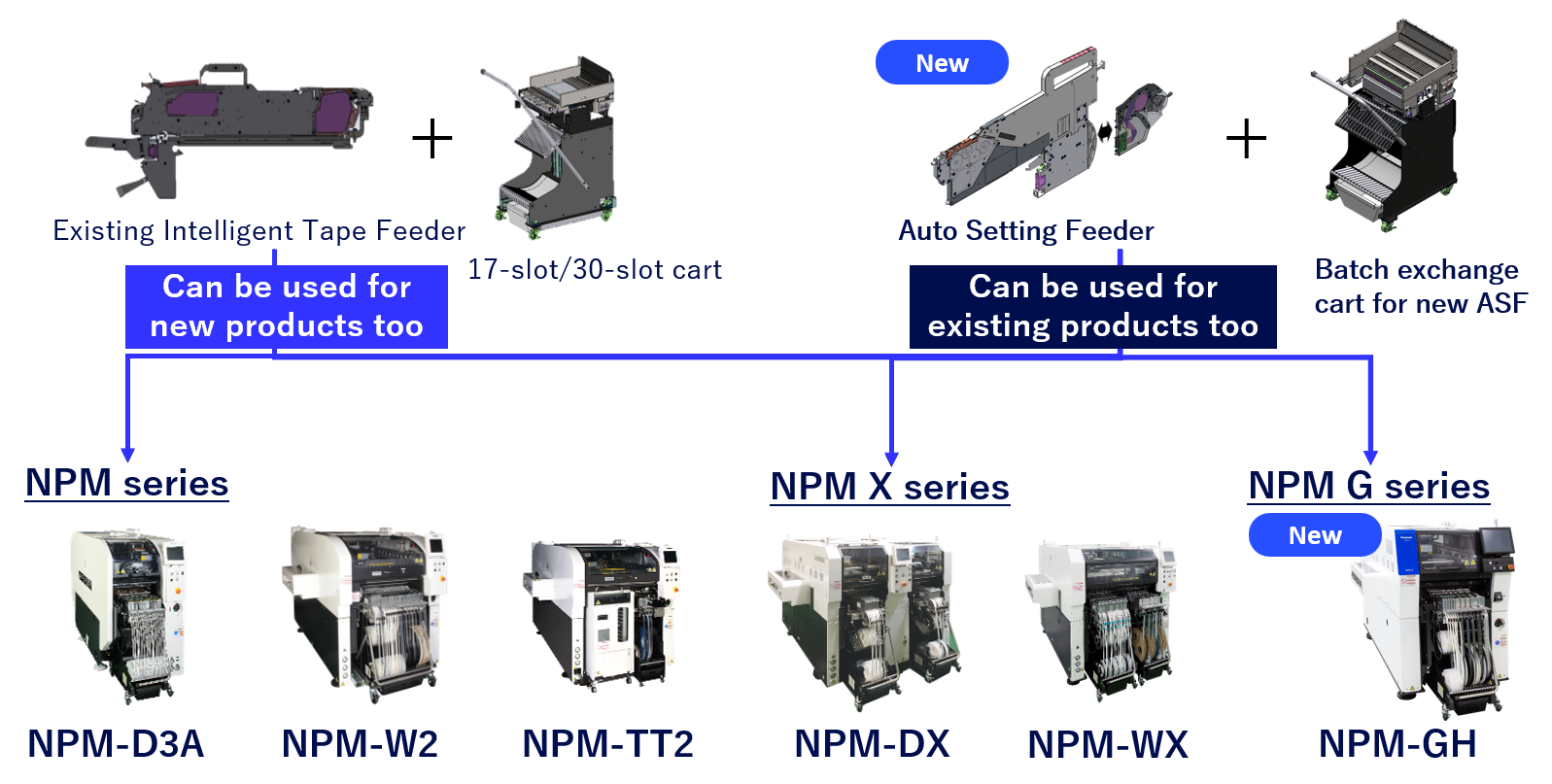

- New ASF + its new cart can be attached to the current Panasonic equipment (NPM series) = Retrofit policy

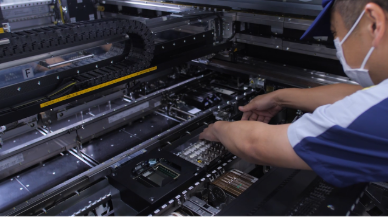

How to attach and remove the Auto Setting Feeder
Easy installation by inserting the feeder to the depth, and easy removal by simply pulling the lever
Auto setting
Automatic tape peeling and loading is completed by simply inserting the pre-processed tape to the depth and pressing a button.
Auto loading

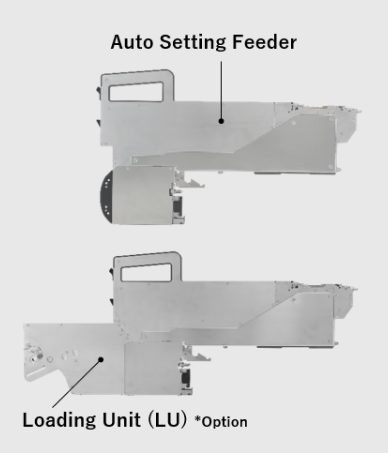

Optional loading unit (LU) automatically fills the next parts without splicing work
Pre-processing work is necessary to use the Auto Setting Feeder. To simplify the pre-processing work, we prepare specialized Jig.

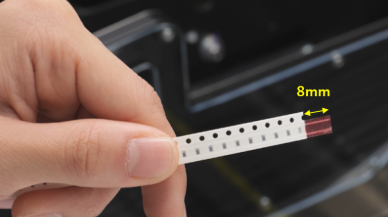

Pre-processing (8mm protrusion)
Cover tape must protrude 8mm beyond the carrier tape tip.

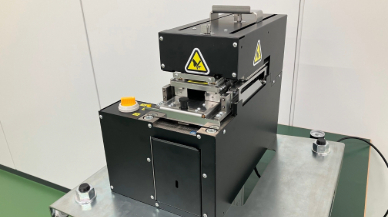

Automatic Half-Cut Jig
Just set the tape tip and twist the switch to complete the pre-processing.

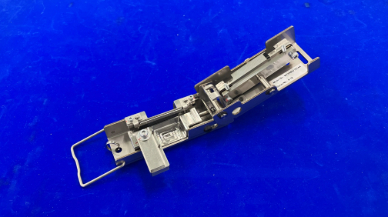

Manual Half-Cut Jig
Just set the tape tip in Jig and push it to remove the carrier tape.

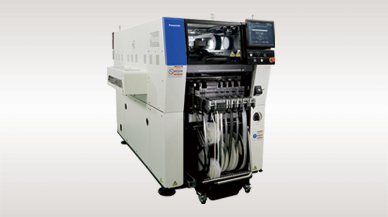

Modular Placement Machine
NPM-GH
This edge device achieves industry-leading productivity and mounting quality for Autonomous Factory. Proposes control of irregularities in the 5Ms and elimination of skill-dependent work.

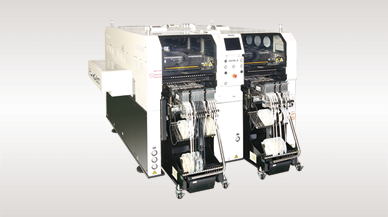

Modular Placement Machine
NPM-DX
Increases throughput by manpower saving on the mounting floor. Extended functionality for the device industry.
Modular Placement Machine
NPM-WX, WXS
Covers a wider range of production types by supporting a variety of supply units and increases throughput by manpower saving on the mounting floor.

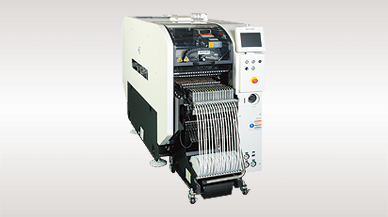

Production Modular
NPM-D3A
Adoption of the latest 16-nozzle head V3. Advancement of head drive unit motion control.

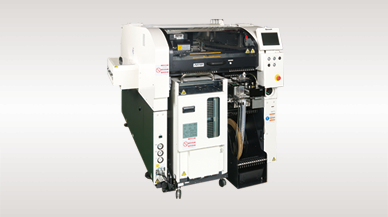

Production Modular
