High-speed, high-precision placement is achieved, providing improvement in the O.E.E. value that customers can feel.
- Dual placement method for complete independent mounting

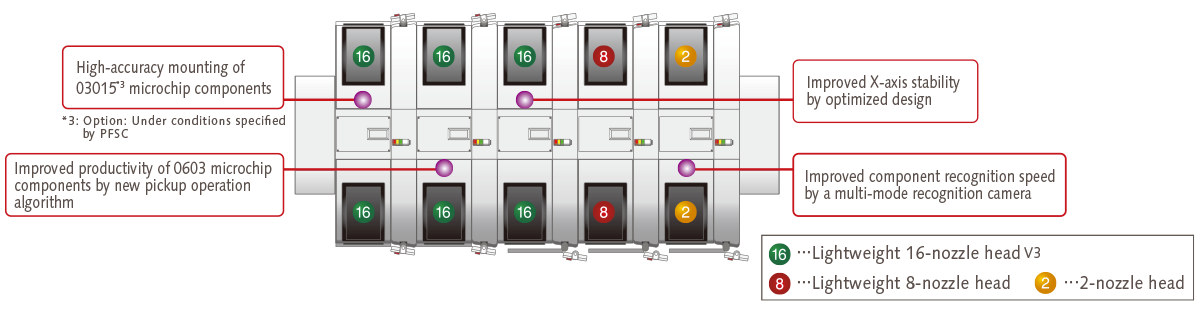

- Improved basic performance that achieves even higher mounting speed and precision
- Improved O.E.E. that maximizes production volume
(For placement accuracy of ±37 μm)
* Support provided to overseas regions may be different. Please inquire with your local distributor.

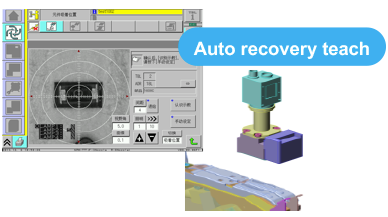

The task to recover from any pickup or recognition errors is automated. This cuts downtime losses and enhances availability
Remote operation from a center control station reduces operating time of the on-site operator and enhances availability

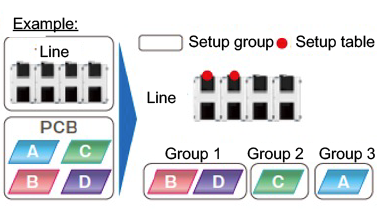

This optimizes production involving several different models to minimize setup workloads, thereby reducing model changeover time

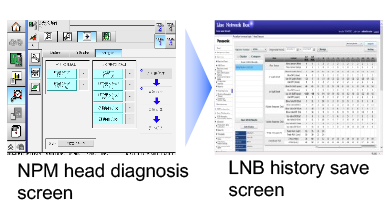

Automatically diagnostics of head are performed on a regular basis, and production losses resulting from heads are avoided by keeping track of any change in the condition of a head and performing maintenance

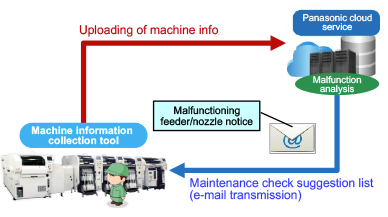

Cloud-based contractual service. Machine information is uploaded to PFSC cloud, and feeders and nozzles requiring condition check are identified. A maintenance check suggestion list containing the result is sent to the customer
Installed MES software
PanaCIM-EE Gen2
Support is provided for improvement in QCD in each task related to mounting, through centralized management of the entire mounting floor
Integrated line management system
iLNB
Optimization of the entire production line by “connecting” Panasonic machines, non-Panasonic machines, and higher-level systems
Automation for mounting processes
We propose factory automation that replaces manual work with automated equipment for mounting-related processes.
Information on current seminars and exhibitions is compiled and posted here. Information on past seminars and exhibitions is also available.
Line simulation
Tact simulation can be performed according to the mounted components and supply form.
Mounting feasibility study (nozzle selection)
We propose the optimum nozzle for the mounted components
Maintenance solution
To ensure that our mounting machines can be reliably used by our customers for many years after delivery, we not only maintain the machines, but also continue to support our customers throughout the life span of the machines, reducing production loss, stabilizing operation and improving work efficiency.
