Various production types are supported through high-speed and highly efficient mounting of odd-form components.
- Direct connectivity with NPM-D3A/NPM-W2
- Placement heads (lightweight 8-nozzle head, 3-nozzle head V2)
- Selectable and configurable supply unit specifications
- Adoption of multi-mode recognition camera
- Alternate and independent mounting support
Suitable for “medium to large lot production” and “on-vehicle repair components” that cannot have common arrays

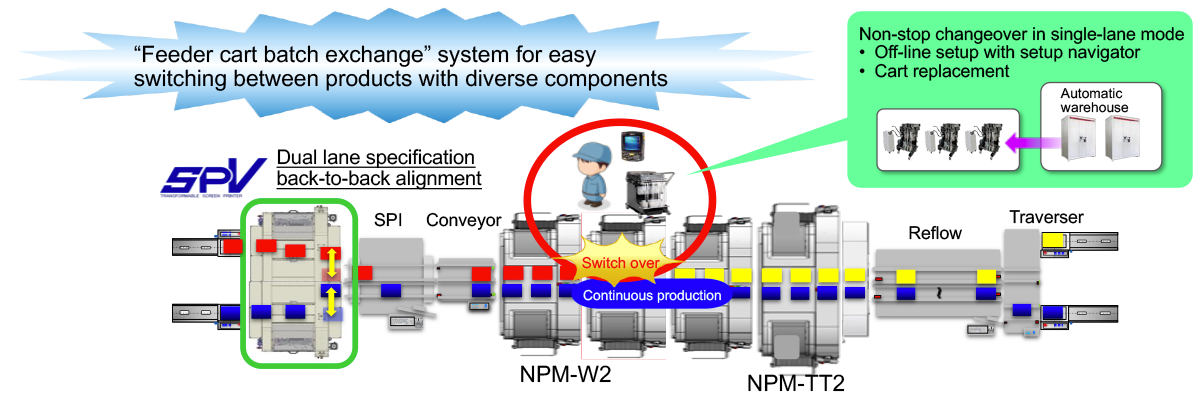

Independent mounting of tray components is achieved by directly linking NPM-TT2 with NPM-DX/D3/W2 dual lane specification!
Installed MES software
PanaCIM-EE Gen2
Support is provided for improvement in QCD in each task related to mounting, through centralized management of the entire mounting floor
Integrated line management system
iLNB
Optimization of the entire production line by “connecting” Panasonic machines, non-Panasonic machines, and higher-level systems
Automation for mounting processes
We propose factory automation that replaces manual work with automated equipment for mounting-related processes.
Information on current seminars and exhibitions is compiled and posted here. Information on past seminars and exhibitions is also available.
Line simulation
Tact simulation can be performed according to the mounted components and supply form.
Mounting feasibility study (nozzle selection)
We propose the optimum nozzle for the mounted components
Maintenance solution
To ensure that our mounting machines can be reliably used by our customers for many years after delivery, we not only maintain the machines, but also continue to support our customers throughout the life span of the machines, reducing production loss, stabilizing operation and improving work efficiency.
