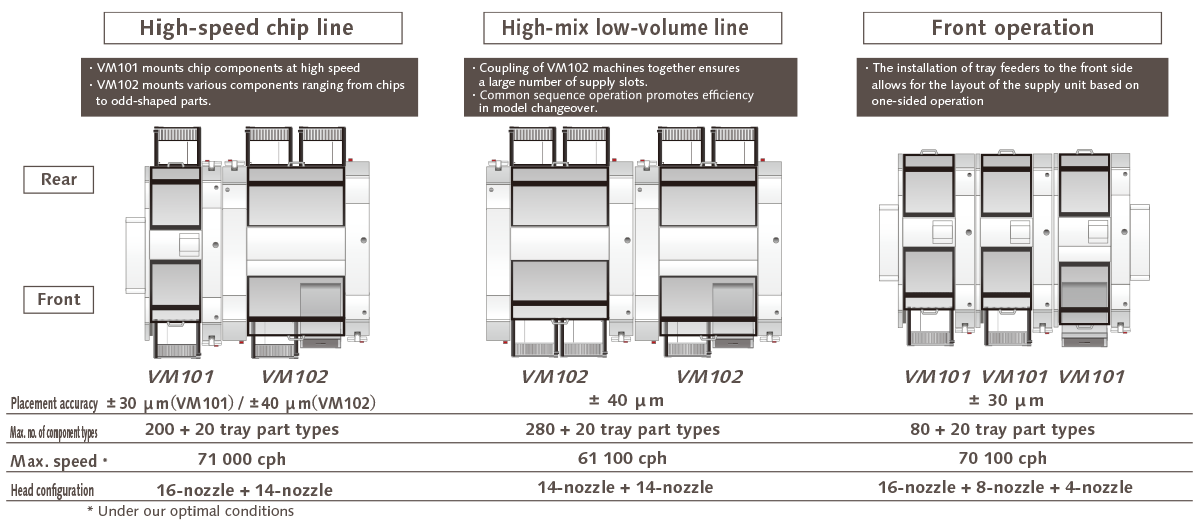

A compact, high-performance entry-level model that can flexibly handle everything from high-speed production to production of various kinds of products in small quantities and prototype production, with a wide range of variations.
VM101
- High productivity with ±30 μm placement accuracy
- Max. speed: 42,000 cph
- Maximum component type: 80-component type / 8 mm tape equivalent
- Placement head select from 16, 8 and 4-nozzle head (NH)
- Feeder specifications: Fixed feeder, feeder cart, tray feeder
VM102
- Highly versatile 1-head solution
- Max. speed: 32,100 cph
- Maximum component type: 160-component type / 8 mm tape equivalent
- Placement head and 14-nozzle head (NH)
- Feeder specifications: Fixed feeder, feeder cart, tray feeder
Component adaptability area
Selects the optimum placement head to match the PCB
Equipped with NPM X series head
42,000 cph/chip
Height: H≦3 mm
Placement accuracy: ±30 μm/chip
22,500 cph/chip
Height: H≦12 mm
Placement accuracy:
±30 μm/chip
±30 μm/QFP □12 mm ~
±50 μm/QFP ~12 mm
8,200 cph/chip
Height: H≦30 mm
Placement accuracy: ±30 μm/QFP
One single head with 14 nozzle heads
A single head can pick up up to 14 components/turn (components up to □14 mm)
32,100 cph
Height: H ≦ 28 mm *Use specific nozzle
Placement accuracy:
±40 μm/chip
±50 μm/QFP ~ □12 mm
±30 μm/QFP □12 mm~
Information on current seminars and exhibitions is compiled and posted here. Information on past seminars and exhibitions is also available.
Line simulation
Tact simulation can be performed according to the mounted components and supply form.
Mounting feasibility study (nozzle selection)
We propose the optimum nozzle for the mounted components
Maintenance solution
To ensure that our mounting machines can be reliably used by our customers for many years after delivery, we not only maintain the machines, but also continue to support our customers throughout the life span of the machines, reducing production loss, stabilizing operation and improving work efficiency.
