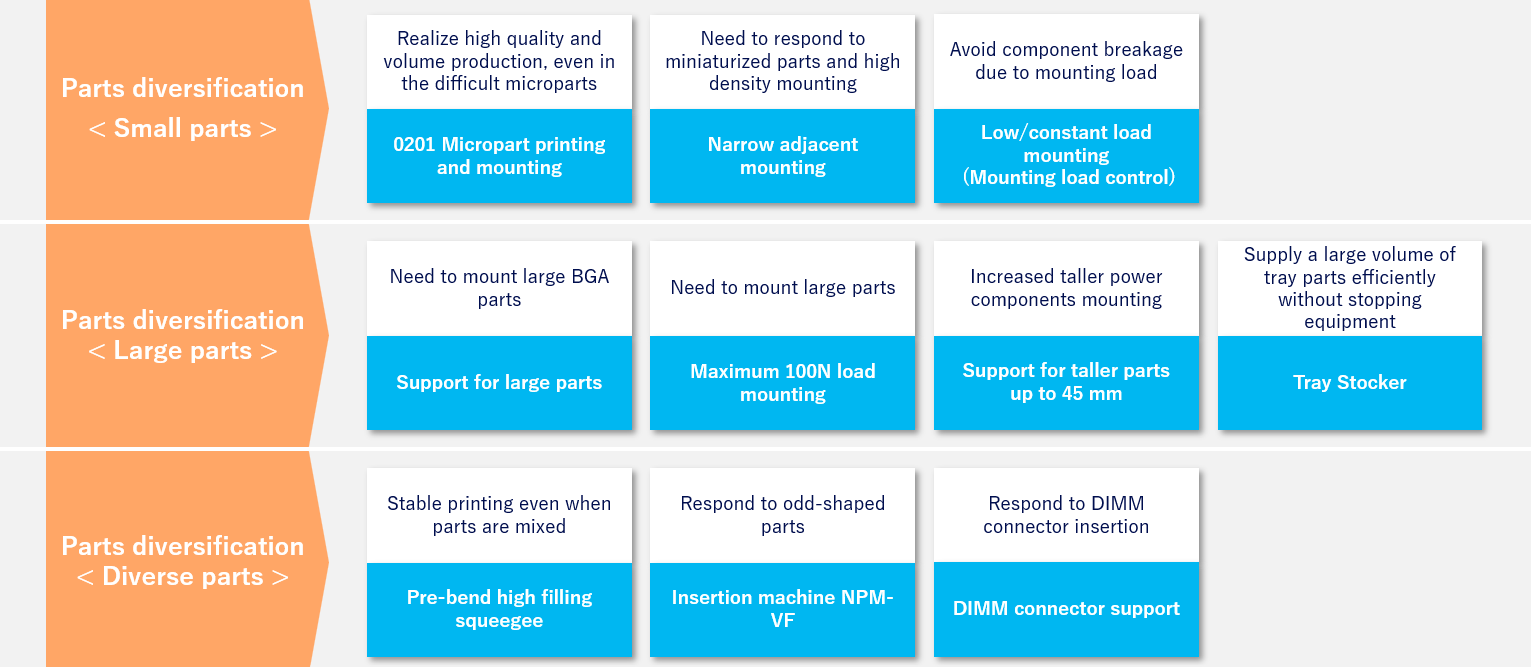

Need to realize high quality and volume production, even in the difficult microparts
-
Need to respond to miniaturized parts and high density mounting
-
Need to mount large BGA parts
-
Need to supply a large volume of tray parts efficiently without stopping equipment
-
Need to print stably even when parts are mixed
-
Need to respond to odd-shaped parts

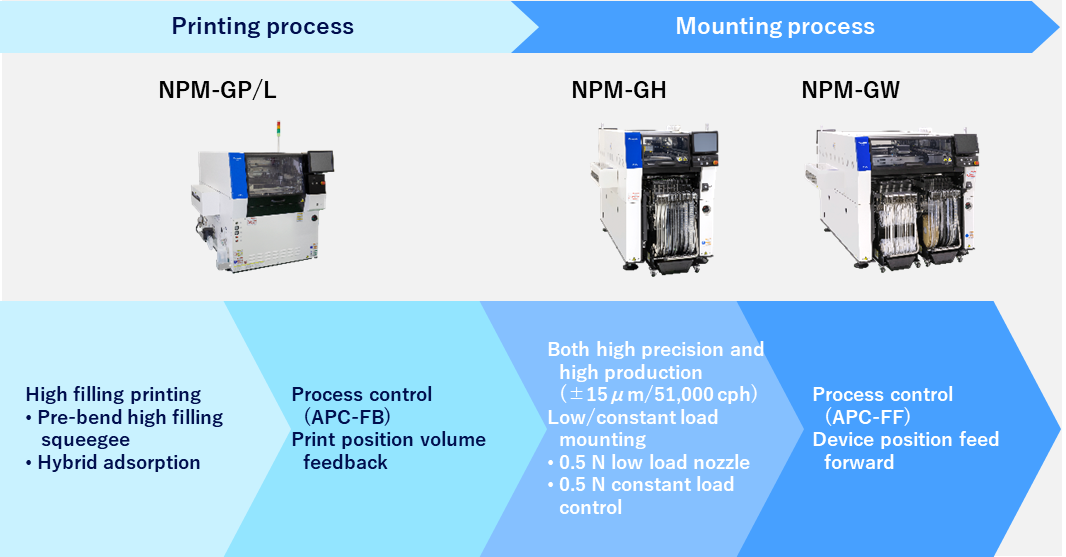

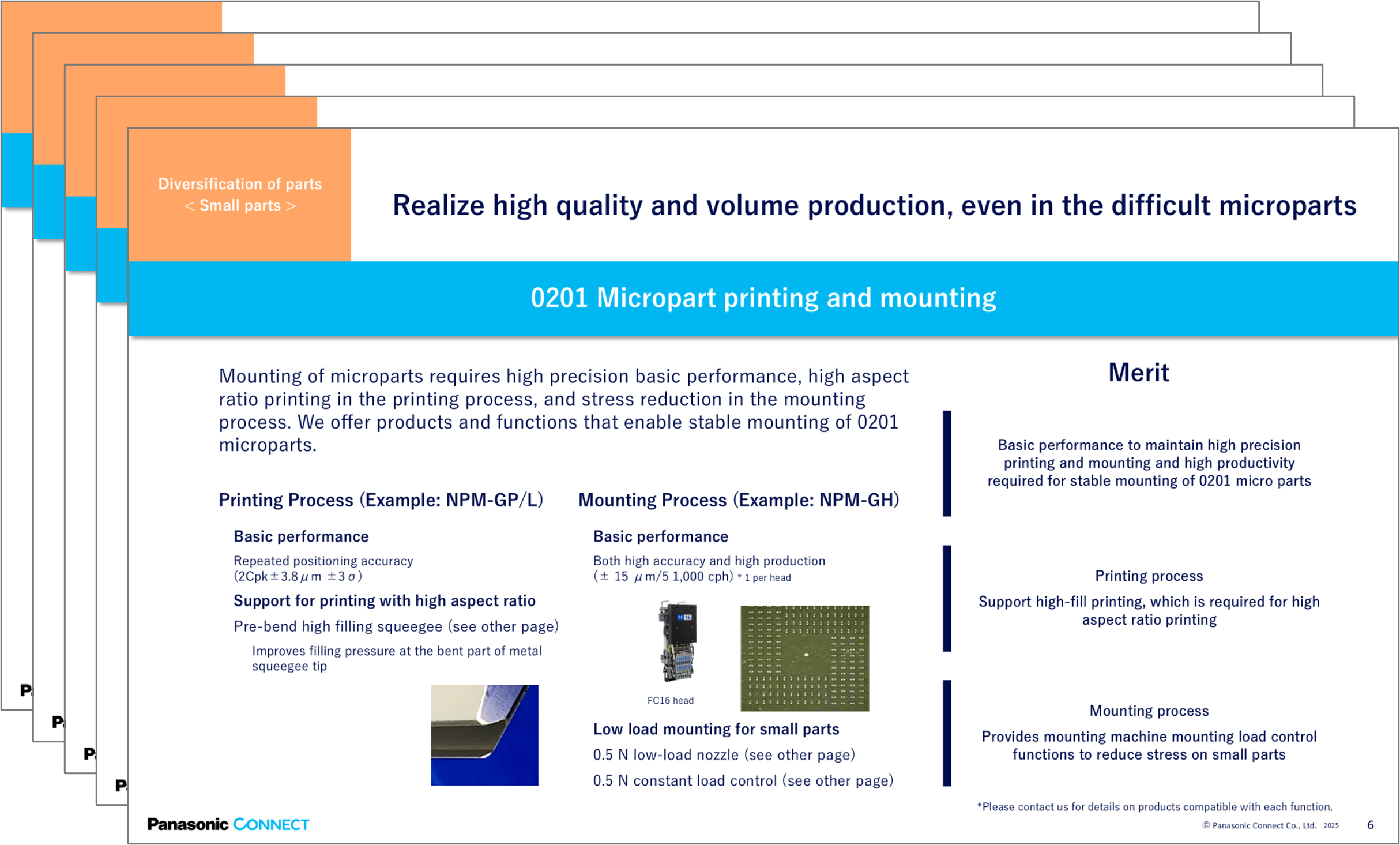

0201 Micropart printing and mounting

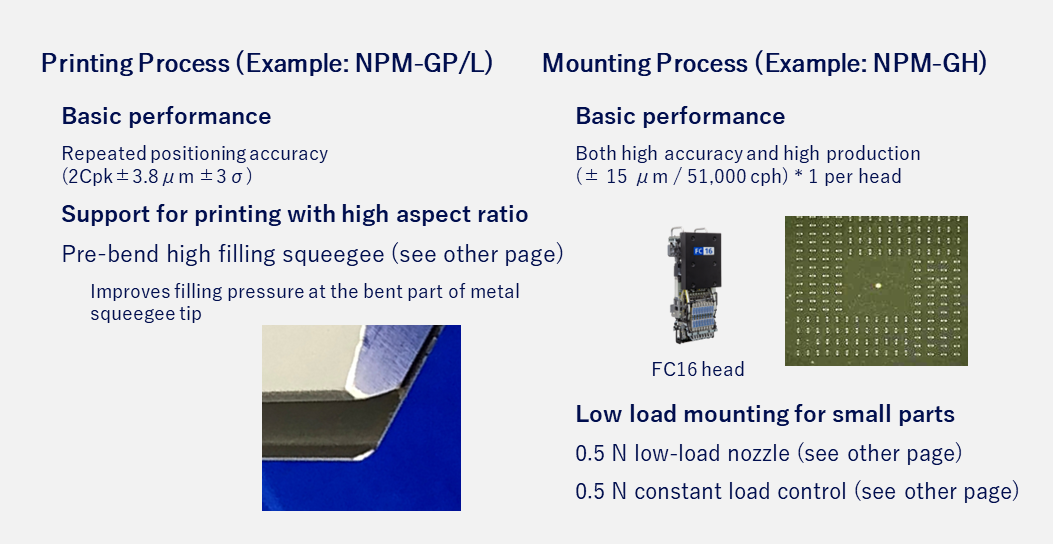

Mounting of microparts requires high precision basic performance, high aspect ratio printing in the printing process, and stress reduction in the mounting process. We offer products and functions that enable stable mounting of 0201 microparts.
Narrow adjacent mounting
Panasonic‘s latest equipment with various solutions for printing and mounting processes required for narrow adjacent mounting, including the NPM-G series, can be provided to existing products with retrofit support.
Support for large parts
The demand for large/heavy BGA parts are increasing.

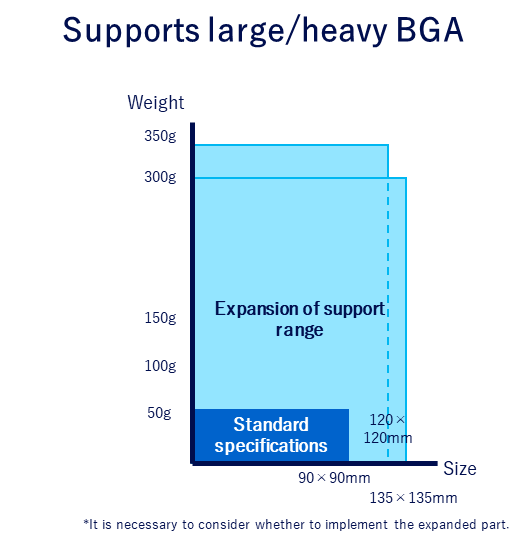

Panasonic supports up to □135 mm/300 g.

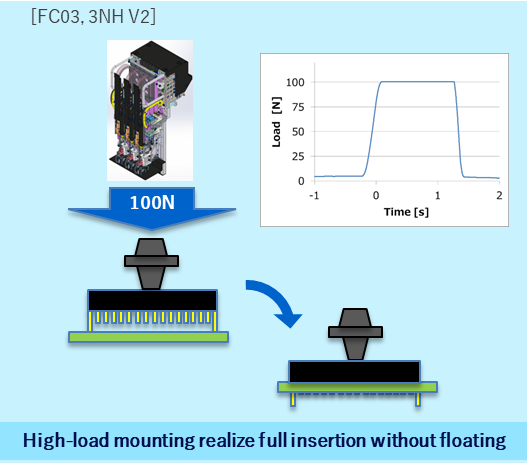

Maximum 100N load mounting
With 100 N load mounting, multi-pin connectors can be automatically inserted from the manual insertion process by the mounting machine to improve mounting quality.
Pre-bend high filling squeegee

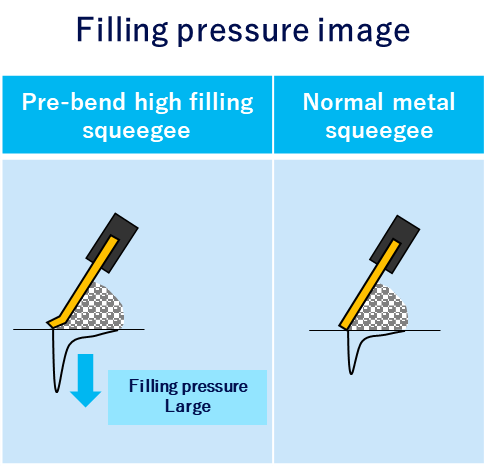

In cream solder printing on substrates where small and large parts are mixed, it is important to secure the opening volume of the metal mask. The Pre-bend high filling squeegee increases the filling pressure at the bent part of the tip, improving the volume ratio and suppressing dispersion.
Insertion machine NPM-VF

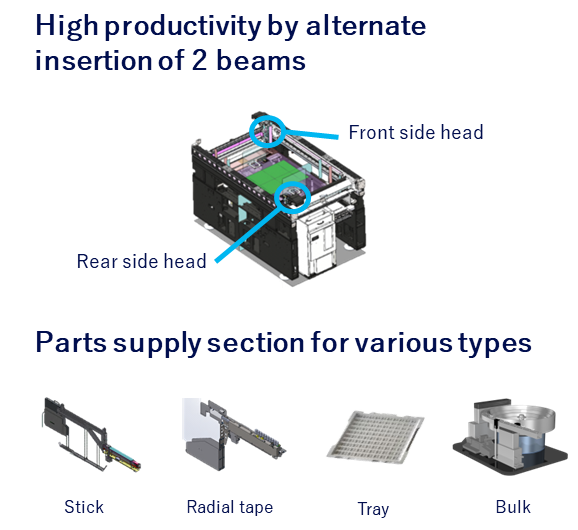

NPM-VF can insert odd-shaped parts and large parts in-line. With 2 beams of head configuration, high productivity of up to 0.65 seconds is achieved.
For other solutions, please see the downloadable documents.
Please contact us for more information on products compatible with each function.
Download
Screen Printer
NPM-GP/L
Optimizes the screen printing process. Equipped with automation functions, also capable of high-accuracy screen printing.
Modular Placement Machine
NPM-GH
This edge device achieves industry-leading productivity and mounting quality for Autonomous Factory. Proposes control of irregularities in the 5Ms and elimination of skill-dependent work.
Modular Placement Machine
NPM-GW
The basic performance has been improved by renewing the core units, such as the placement head and recognition camera. It now supports a wide range of components and PCBs.
Odd-form Component Insertion Machine

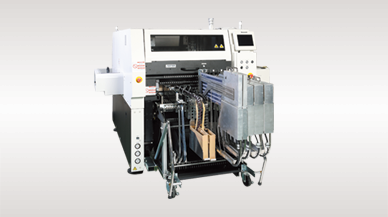

NPM-VF
Automation of odd-form components insertion process. Various configurations of head tools and machine feeder configurations to adapt to different types of components.
Automation and Manpower Saving Solutions
We propose high-quality production systems using “Panasonic’s process management techniques” and “collaboration through cooperative system integrator”.
