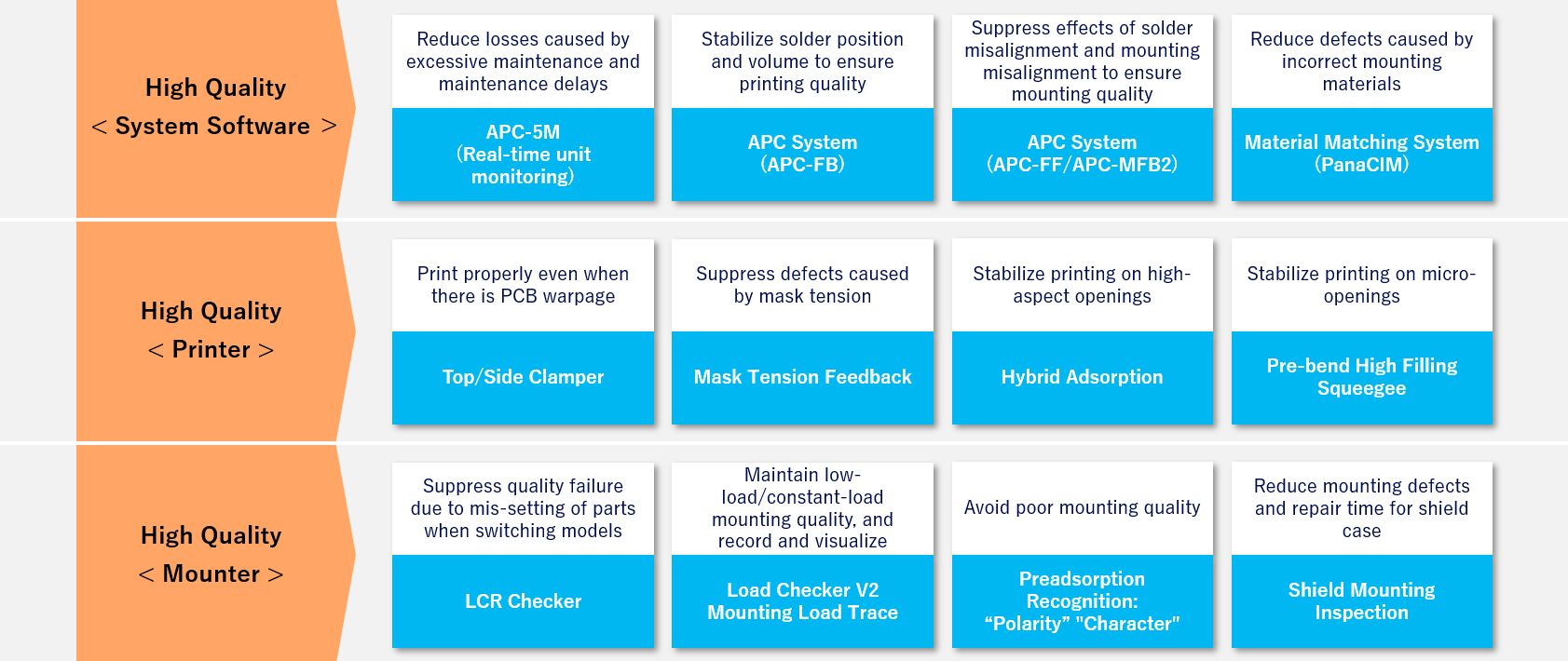

Need to reduce losses caused by excessive maintenance and maintenance delays
-
Need to stabilize solder position and volume to ensure printing quality
-
Need to print properly even when there is PCB warpage
-
Need to suppress defects caused by mask tension
-
Need to suppress quality failure due to mis-setting of parts when switching models
-
Need to maintain low-load/constant-load mounting quality, and record and visualize
APC-5M (Real-time unit monitoring)

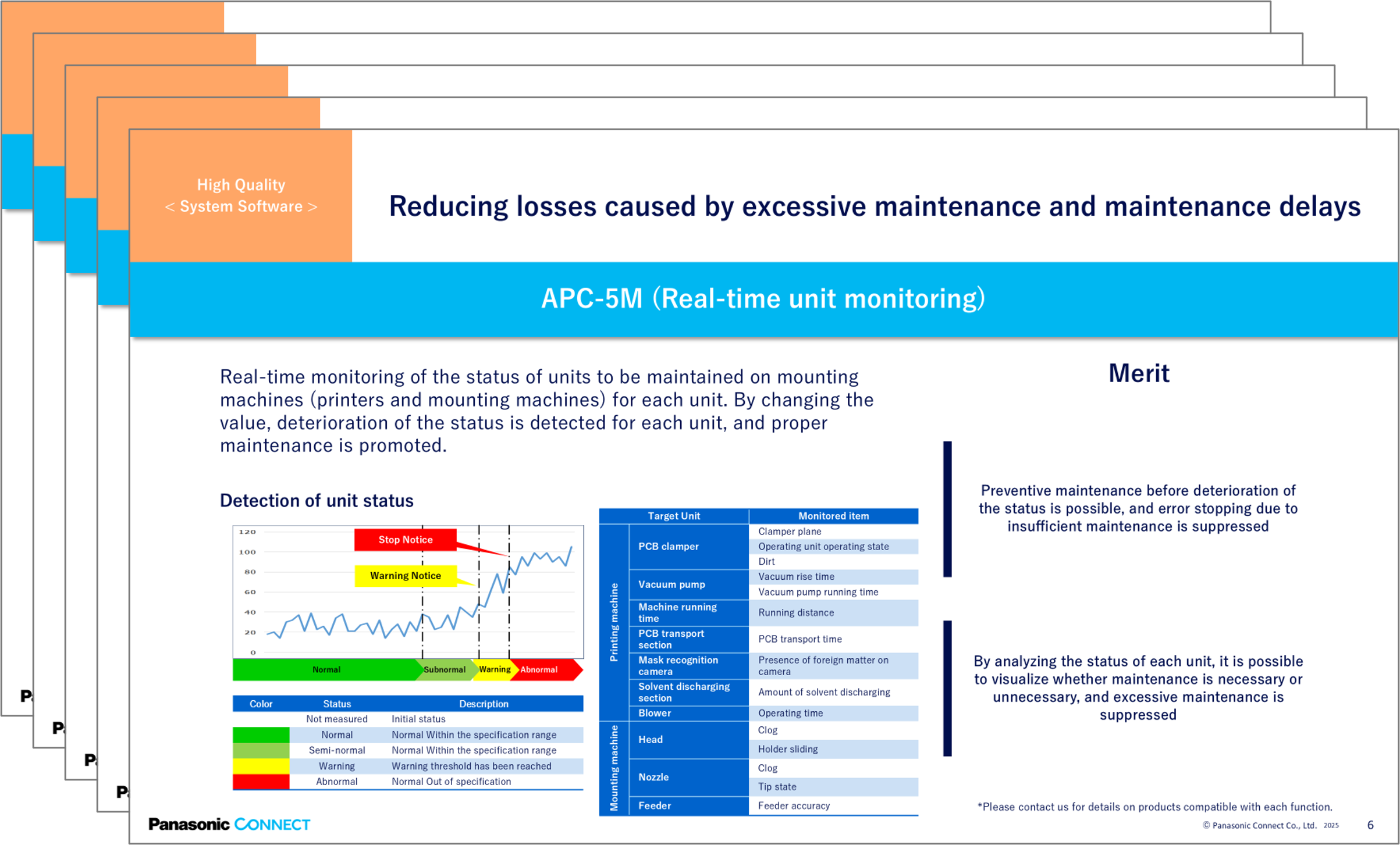

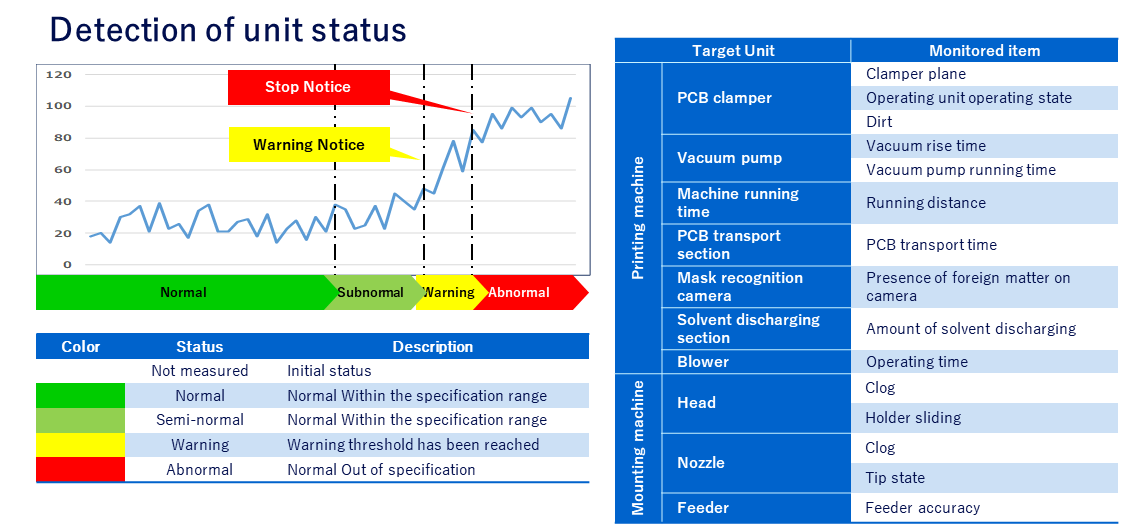

Real-time monitoring of the status of units to be maintained on mounting machines (printers and mounting machines) for each unit. By changing the value, deterioration of the status is detected for each unit, and proper maintenance is promoted.
APC System (APC-FB)

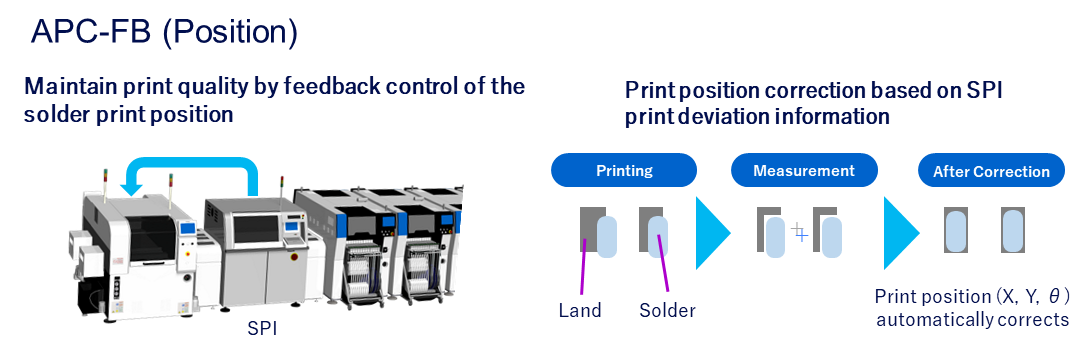

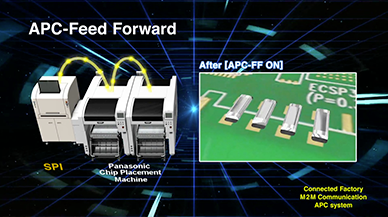

APC System automatically stabilizes print quality by statistically processing the solder measurement results from the Solder Pasete Inspection (SPI) machine and feeding them back to the printer to control the solder position and volume.
Top/Side Clamper

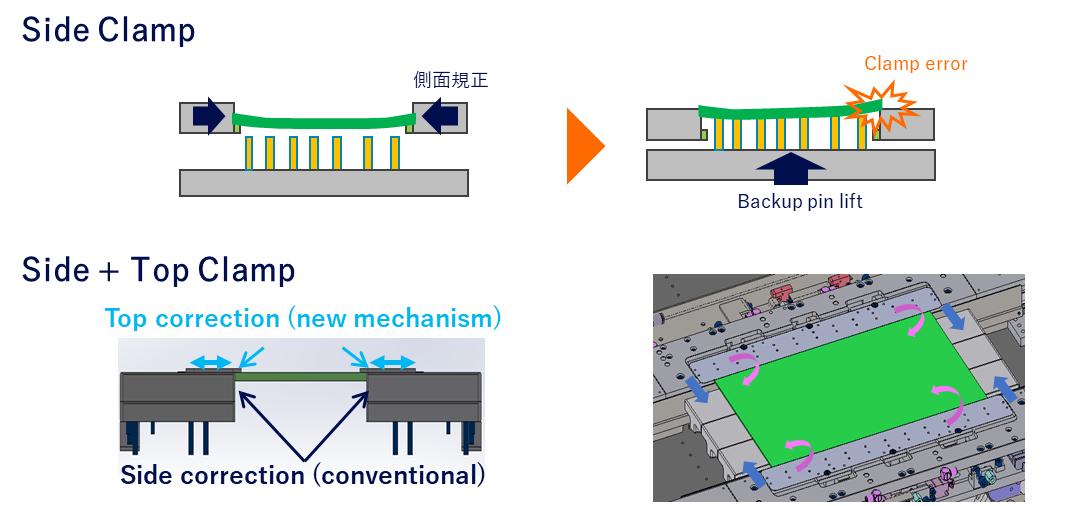

In addition to the conventional side clamper, a top clamper is adopted to hold the PCB from the top. This strengthens the solution to PCB warpage and further improves print quality.
Mask Tension Feedback

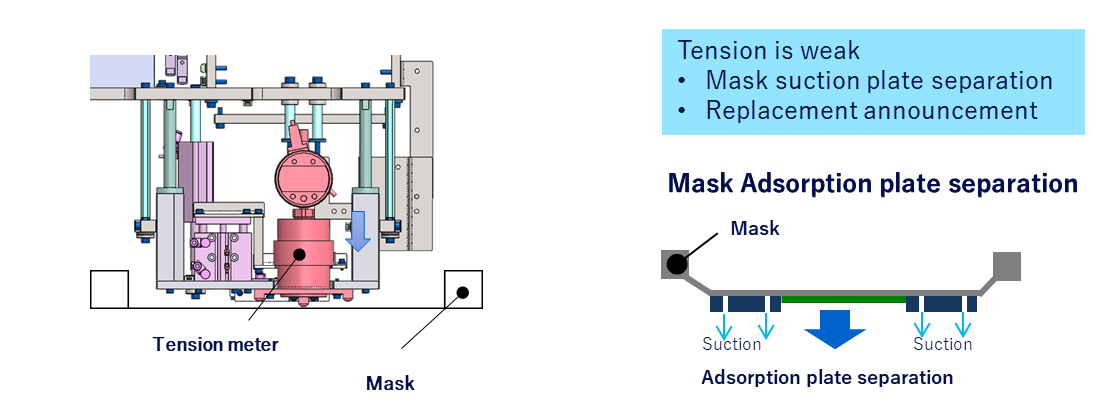

Check the mask condition by measuring the mask tension when setting the mask. Notify that the mask has changed to the optimum plate separation operation or that the mask has been replaced.
LCR Checker

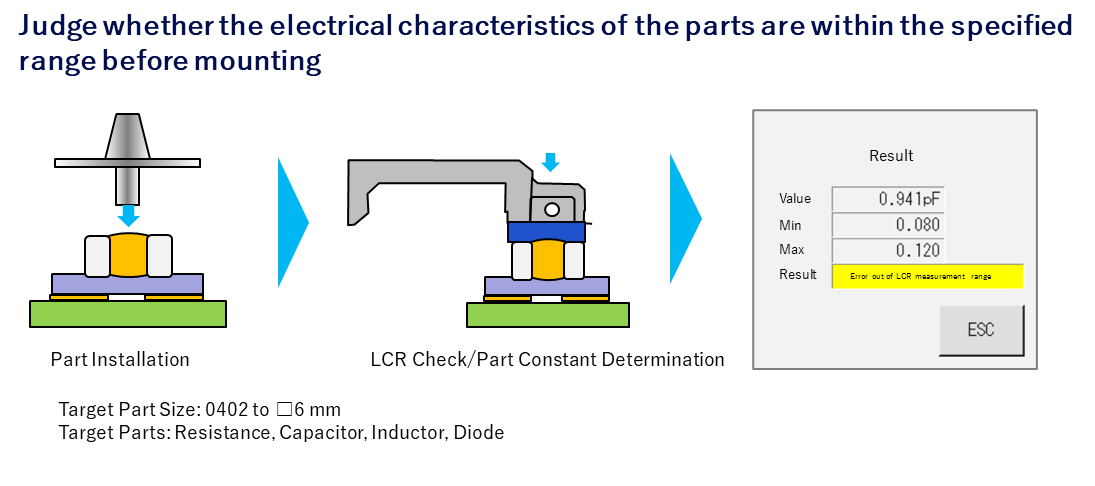

LCR checker automatically checks the constant number of installed parts when starting production, supplying parts, or switching models. This function contributes to the production of good quality products by preventing incorrect mounting due to incorrect feeding, abnormal parts, or incorrect labeling on reels.
Load Checker V2/Mounted Load Trace

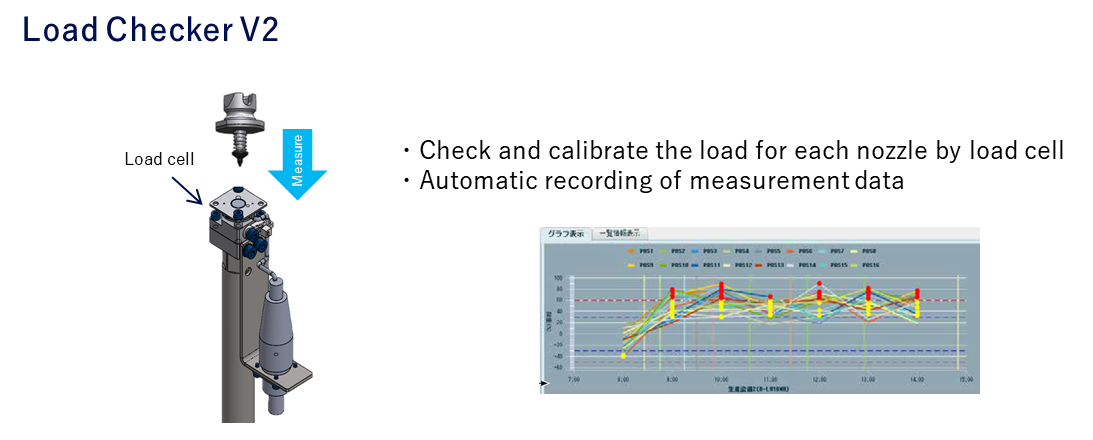

With the increase in the number of small parts, mounting load management becomes more important. By visualizing the nozzle sliding condition of the mounting head, performance maintenance and stable operation are realized. In addition, by recording the actual load at each mounting point, the quality is visualized and contributes to quality improvement.
For other solutions, please see the downloadable documents.
Please contact us for more information on products compatible with each function.
Download
Mounting line system APC-5M

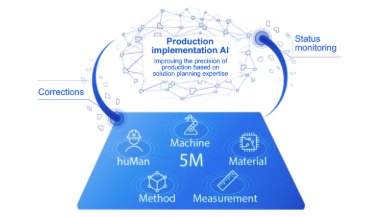

"5M process control" realizes high quality production and stable operation.
APC System
Connecting a mounting machine or printers to inspection equipment enables components to be placed correctly in the target position
Mounting MES Software
PanaCIM-EE Gen2
Support is provided for improvement in QCD in each task related to mounting, through centralized management of the entire mounting floor
Screen Printer
NPM-GP/L

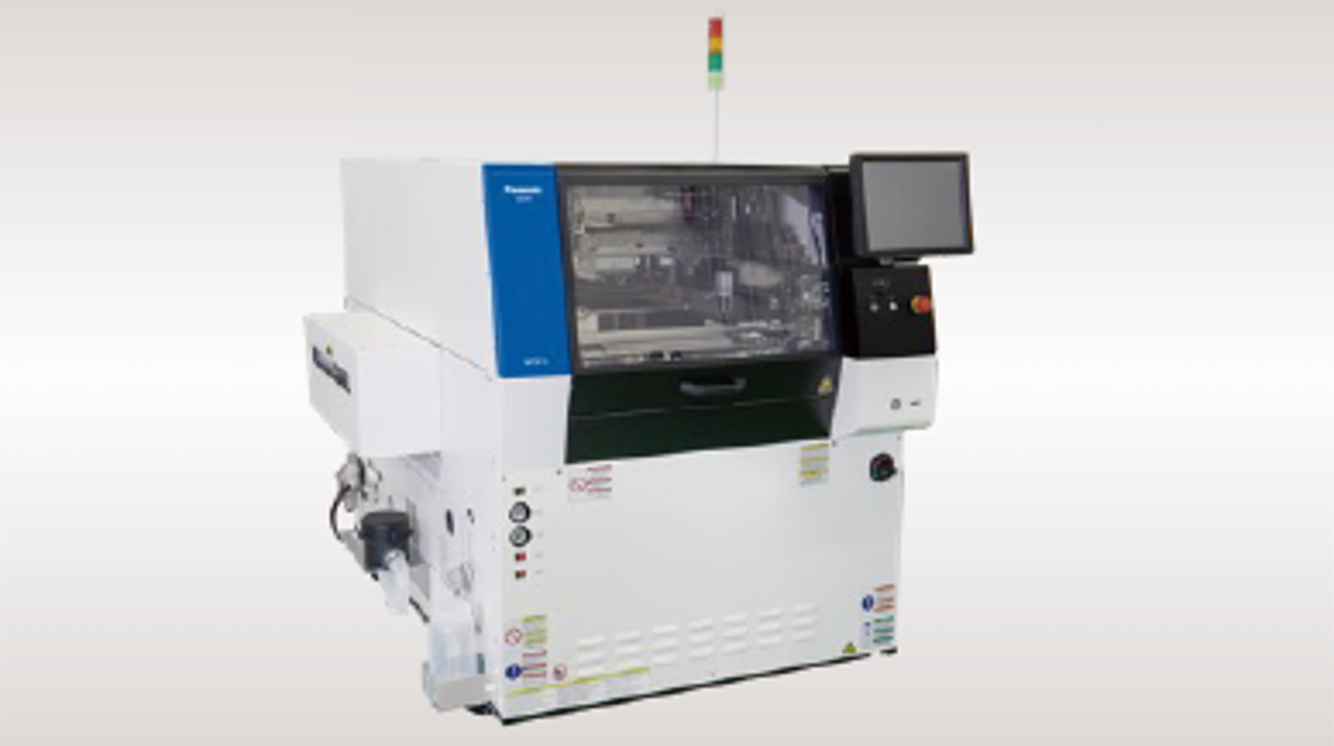

Optimizes the screen printing process. Equipped with automation functions, also capable of high-accuracy screen printing.
Modular Placement Machine
NPM-GH

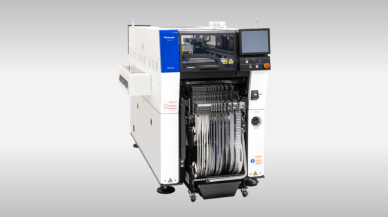

This edge device achieves industry-leading productivity and mounting quality for Autonomous Factory. Proposes control of irregularities in the 5Ms and elimination of skill-dependent work.
Modular Placement Machine

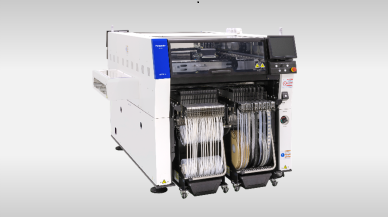

NPM-GW
The basic performance has been improved by renewing the core units, such as the mounting head and recognition camera. It now supports a wide range of parts and PCBs.
