Non-stop solder printing

Productivity Improvement Solutions

Reduction of short-time stoppages and increased adaptability to prototype production

Productivity Improvement Solutions

Visualization of problems and optimization

Productivity Improvement Solutions

• Monitors solder amount and automatically feeds solder
• Enables long-term, continuous printing
• No need to stop the machine to feed additional solder
• Contributes to labor saving

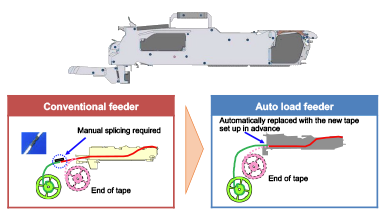

• Automatic feeding of tape components without stopping machines
• No splicing work nor skilled workers required
• Useful for cut tape components during prototyping
  * Left-over components made from cut tape

• Two large reels can be set on an 8-mm double tape feeder
• Up to 12 reels can be set in one reel box

• Faster and more reliable tape splicing
• Supported tape width: 8 mm to 72 mm

• Prevents tangling of highly adhesive cover tape
• In particular, eliminates sticking to the cover tape compartment
• Reduces the load on the feeder and reduces short-time breakdowns caused by tape feed malfunctions

• Useful when the component pickup position is unstable due to large pocket size
• Stabilizes component orientation during component pickup
• Reduces short-time breakdowns caused by pickup mistakes

• Eliminates tape defects caused by reel lifting and reduces short-time stoppages
• Integrated feeder and reel components

• Mounting machine performs automatic head diagnosis by itself
• Enables preventive maintenance through trend management
• Reduces the impact of head performance degradation on mounting quality

• Provides automatic inspection, adjustment, and calibration of malfunctioning feeders
• Enables stable mounting thanks to the ability to monitor feeder status
• Reduces man-hours through automation and the need for skilled workers

• Automatic nozzle holder attachment and detachment, cleaning, and inspection
• Routine maintenance of placement heads can be performed without the need for skilled workers
• Reduces man-hours due to short work time

• Quick and reliable cleaning of nozzles
• No knowledge nor high investment required
• Periodic cleaning reduces degradation of pickup ability and short-time breakdowns caused by pickup mistakes

• Adaptable to newly adopted odd-form components
• 59 nozzle types for more than 631 varieties of odd-form components

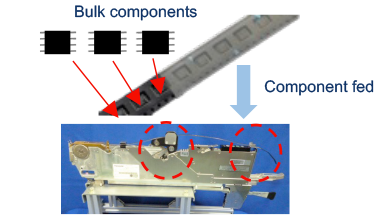

• Supports prototype and low-volume production from bulk components
• Provides stable mounting of tape with slide cover by attaching a dedicated adapter on the feeder

• Visualization and quantification of on-site problems
• Optimal proposals for improving on-site problems
• Analysis and reporting of results in a short period of time

• Manufacturing site consulting
• Promotion of on-site improvements in collaboration with customers
• Developing personnel to promote improvement through the activities
