Are you facing problems with preliminary preparations for constructing a robotic system?

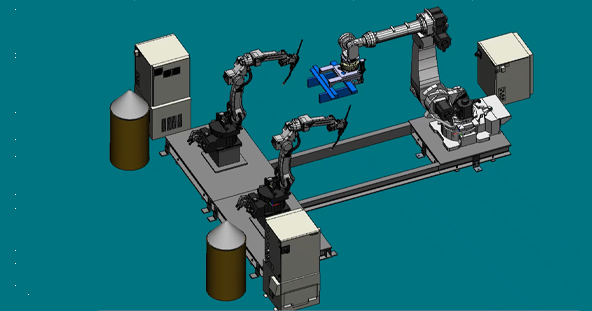

With DTPS III, you can construct a system in virtual space on a computer and perform selection of robot model, layout concept, posture confirmation and interference checks.
The above considerations enable “cost control by reducing rework,” “compact layouts” and “significant reduction of the start-up period.”
System utilization for problem identification

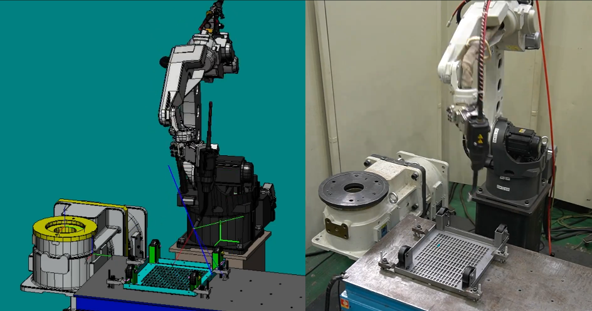

The software can be used to perform simulation verification of robot movements, interference checks with jigs and ancillary equipment, configuration of ancillary equipment (shifting, welding positioner, etc.), which are important verification items for the configuration of a system that ensures torch posture taking into consideration quality that is important for welding.
The software comes with various functions as standard, such as functions to calculate approximate welding takt time by setting welding and robotic speed.
Creation of offline data
DTPS III has functions to edit welding conditions and robot commands, and has the same teaching (programming) functions as the actual robot.
Editing the program, including modifying and copying each step, is also easy, which reduces the time required to start up new machine, add new workpieces,
A video illustrating the utilization and benefits of DTPS III.
Simulation Functions
1. Extensive simulation functions
You can check details of the error in the case of interferences or if the operating range is exceeded.
2. Adding workpieces with ease

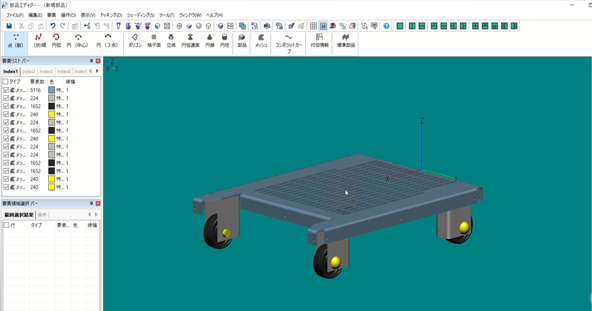

The software is equipped with simple geometry model creator and 3D data import functions.
3. Various useful tools are provided
The software is equipped with useful functions, such as calculation of approximate welding takt, video creation functions and, macro functions.
Management Functions
4. Automatic data reception of welding log

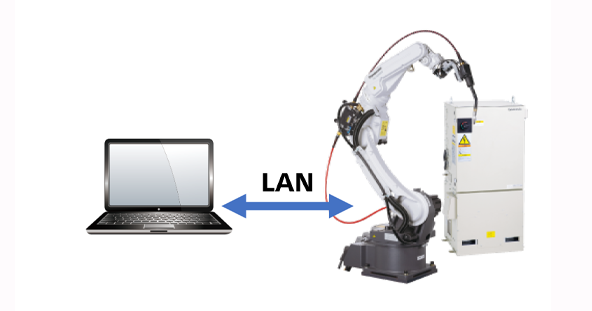

The robot and the PC are connected via LAN to automatically save backup files and error history etc.
5. Automatic recording and reception of welding waveform data

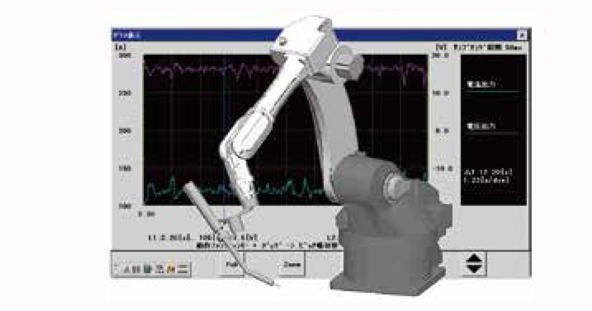

Welding waveform data stored in the robot can be automatically saved through a LAN connection.
* “Weld Data Management Function” is required.
6. Smooth operations
The software is small and can run on mobile PCs that meet the necessary specifications.
| product name | model no. | including functions | |||||
|---|---|---|---|---|---|---|---|
| Data management function | User management function | Text conversion function | PC editing function | Automatic data Receiving function | Simulation function | ||
| DTPSⅢ | YA-1NPCD1 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 |
Formats such as XGL, ZGL, 3DXML, OBJ, VRML, STL, IGES and DXF are supported.
A PC that meets the following specifications is required.
| CPU | 1.6 GHz or higher（recommended：3.2 GHz、Dual CPU） |
|---|---|
| Memory | 1 GB or more（redommended：2 GB） |
| Graphics Card | Memory：128 MB or more（recommended：1 GBでOpen GL support） |
| Resolution | 1024×768 or greater（redmmended：1280×1024） |
| OS |
Windows® 10 (Home,Pro) |
| HDD |
Text conversion software：80MB or more free space |
| Interface | ・CD drive（required for software installation） ・Ethernet voard（required for network connection with the robot） ・USB（Type-A）port（required when using the software supplied with the security unit） |
