YD-500AE2TAS
Catalog coming soon
* In addition to this product (welding power source), a wire feeder, remote control unit, torch, and gas regulator are required for welding.
Key functions
-
Full digital control achieves low spatter welding
-
High-precision encoder feedback control
-
Reliable instantaneous arc start
-
Controller enabling all settings at users' fingertips
A variety of arc characteristics are available as standard. The optimal mode can be selected according to various welding situations.
Operation functions are integrated in the remote control unit. Users can set welding conditions at their fingertips.
Full digital control achieves low spatter welding

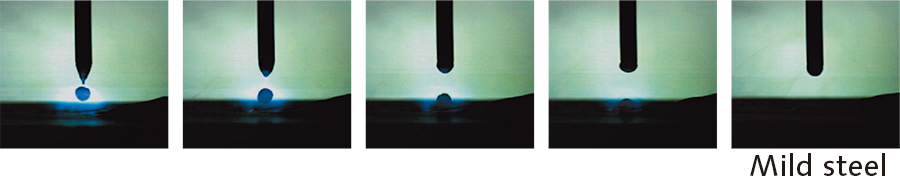

Optimal and high-precision pulse waveform control achieves one-drop-per-pulse regular control. It also quickly responds to and regulates arc length changes to achieve stable and beautiful welding.
High-precision encoder feedback control

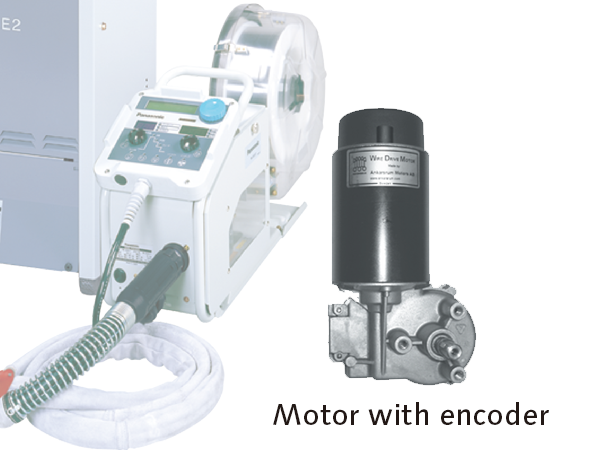

A motor equipped with an encoder performs high-precision wire feeding. The uniform wire feeding performance is maintained even when external factors occur, including changes in the power supply voltage and ambient temperature.
Reliable instantaneous arc start

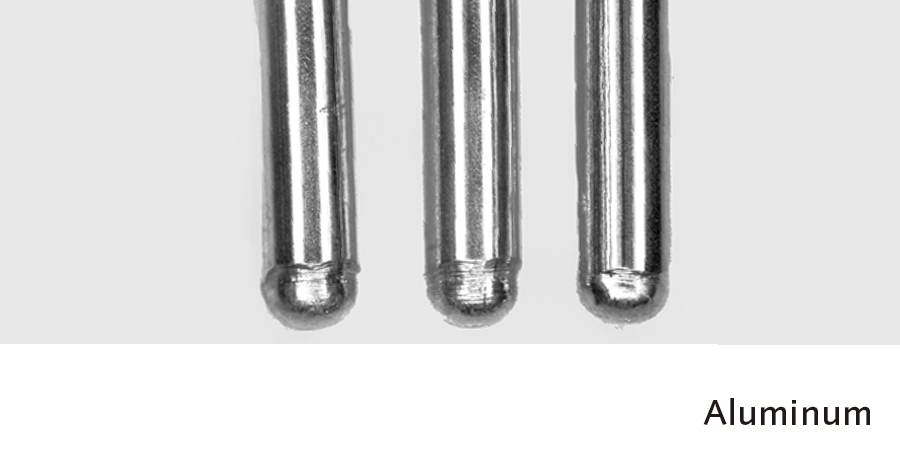

This product has achieved a reliable arc start with quiet sounds and minimal spatter scattering. The completion of welding and the pulse output are synchronized to consistently achieve a uniform finish. For hard aluminum welding, similar welding performance is reproduced with the same welding conditions.
Controller enabling all settings at users' fingertips
The controller is directly connected to the wire feeder and allows users to adjust welding conditions with a simple operation. An optional extension cable can be used to set conditions at users' fingertips more easily.
* Direct connection type YD-00DEU1TAG (example of a simple adjustment operation of welding conditions)
●YX-25AD1
For CO2 / MAG / MIG welding
●YX-503A
For aluminum MIG welding
●YD-00DEU1TAG
Cable length : 0.4 m
Extension cable (option)
●YV-003DE1A
Please purchase separately as necessary.
| Model number | YD-500AE2TAS | |||
|---|---|---|---|---|
| Rated input voltage | V | 200 AC (allowable fluctuation range：180 to 220) 220 AC (allowable fluctuation range：198 to 242) Selectable using the switch on the rear of the unit |
||
| Number of phases, rated frequency | ー | 3-phase, 50 / 60 Hz | ||
| Rated input | kVA | 28 | ||
| kW | 26.5 | |||
| Maximum open circuit voltage | V | 73 DC | ||
| Rated duty cycle (10-minute cycle) | % | 100 | ||
| Output current adjustment range | A | 40 to 500 DC | ||
| Output voltage adjustment range | V | 14 to 45 DC | ||
| Control method | ー | IGBT inverter type | ||
| Memory functions | ー | 32-channel storage and reproduction | ||
| Applicable welding process | ー | CO₂ / MAG / MIG / Pulsed MAG / Pulsed MIG | ||
| Waveform control function | ー | Digital setting | ||
| Applicable shielding gas | 一 | CO₂ : 100 % CO₂, MAG : 80 % Ar and 20 % CO₂, Stainless steel MIG : 98 % Ar and 2 % O₂, Hard aluminum MIG : 100 % Ar |
||
| Applicable wire diameter | mm | 1.2 / 1.4 / 1.6*1 | ||
| Applicable wire materials | ー | Mild steel / Mild steel FCW / Stainless steel / Stainless steel FCW / Hard aluminum | ||
| Pre-flow time | s (seconds) | 0.02 to 5.00 (adjustable in 0.02 increments) | ||
| Post-flow time | s (seconds) | 0.10 to 5.00 (adjustable in 0.02 increments) | ||
| Arc spot time | s (seconds) | 0.30 to 10. 00 (adjustable in 0.1 increments) | ||
| Input power supply terminal | ー | Terminal block (M6 bolt fixing) | ||
| Output terminal | ー | Copper plate terminal (with M8 bolt) | ||
| External dimensions (width x depth x height) | mm | 440 × 585 × 945 | ||
| Mass | kg | 117 | ||
*1: Diameters of aluminum wires: 1.2 / 1.6
