Mini (SL7) Series (YD-160SL7 / YD-160SL7G30 / YD-190SL7)
SL7 Catalog
* In addition to this product (welding power source), a wire feeder, remote control unit, torch, and gas regulator are required for welding.
Key functions
-
Easy-to-use machine specialized for welding thin plates
-
Easy operation simply by rotating one handle
-
Suitable models can be selected according to the plate thickness and type of workpieces
-
Safe and secure structure

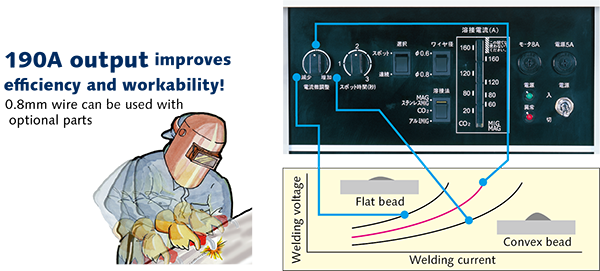

All users can easily operate this series simply by operating the handle to set the output. The bead shape can also be adjusted using the fine adjustment knob on the front panel.
A 6 m long cabtyre cable is included as standard to improve the handling of the wire feeder and eliminate disruption to welding work.
YD-160SL7G30 also supports stainless steel and aluminum welding. By changing the feed system, this series can be applied to a wide range of welding work.
Easy-to-use machine specialized for welding thin plates
The Mini (SL7) series is a specialized machine for welding thin plates. Users can choose from three models depending on the plate thickness and material. The bead shape can be adjusted using the fine adjustment knob on the front panel. The maximum output is high enough, reaching 190 amperes, while the continuous use currents are 120 amperes for CO2 welding and 100 amperes for MAG welding.
* Please use argon gas containing 5 % to 20 % carbon dioxide gas for MAG welding.
Smooth arc start

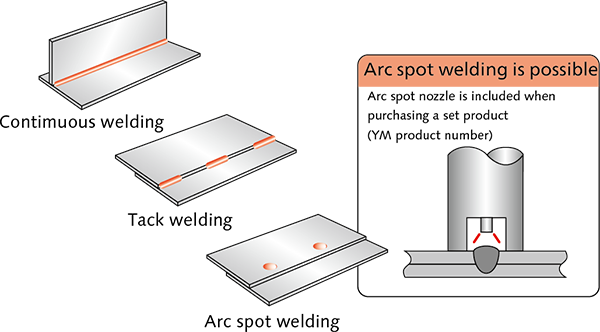

The slow-down start method enables continuous welding as well as tack welding and intermittent welding with a smooth arc start. Furthermore, low spatter welding has been achieved.
Simple operation with a single handle

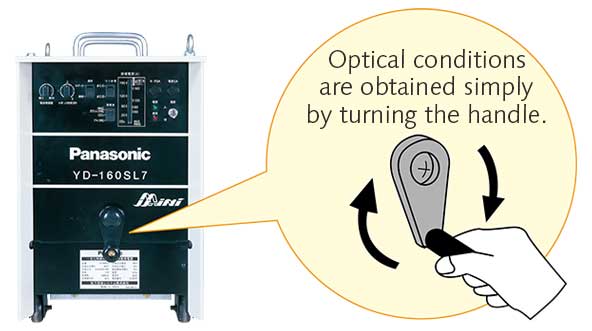

The optimal welding conditions can be set by simply rotating the output setting handle to obtain a stable arc.
Wire feeder designed for ease of handling (Mini 160)

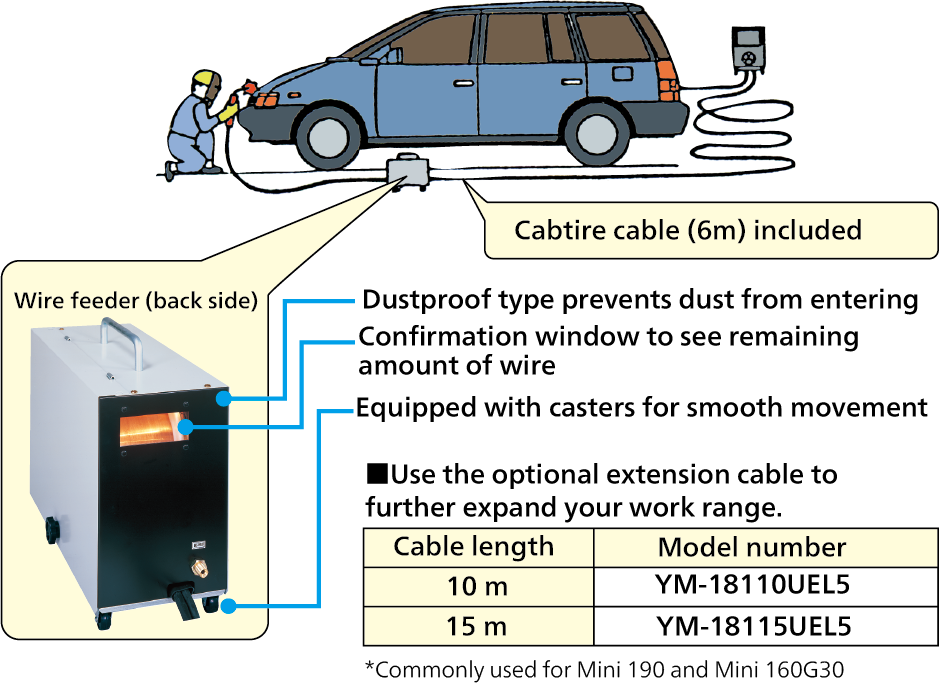

The Mini 160 comes with a 6 m long cabtyre cable for ease of handling. The wire feeder with casters can be moved to any location. A window installed on the wire feeder allows users to easily check the remaining wire amount, facilitating timely replacement.
Environmentally friendly feature in addition to the safe and secure structure
This series has adopted a safety structure design that is rated IP21 under the International Electrotechnical Commission (IEC) standards by improving the robustness and dustproof property of power sources. The structure prevents small animals from entering during storage. Furthermore, this series has been developed with energy saving taken into consideration. Its energy saving circuit is activated when the torch is switched off after welding is finished.
●YX-15CE1
For CO2 / MAG
●YX-20CE1
For argon gas welding
●YX-25AR
For CO2 / MAG
| Welding power source | YD-160SL7 | YD-160SL7 (for G30)） | YD-190SL7 | |
|---|---|---|---|---|
| Rated input voltage | V | 200 AC (allowable fluctuation range: 180 to 220) | ||
| Number of phases, rated frequency | ー | 3-phase, 50 / 60 Hz | ||
| Rated input | kVA | 6.0 | 6.4 | |
| kW | 5.7 | 6.2 | ||
| Maximum open circuit voltage | V | 36 DC | 32 DC | |
| Rated duty cycle (10-minute cycle) | % | 30 | 40 | |
| Output current adjustment range | A | 20 to 160 DC | 60 to 190 DC | |
| Output voltage adjustment range | V | 14 to 26 DC | 16 to 24 DC | |
| Applicable welding process | ー | CO₂ / MAG | MIG | CO₂ / MAG |
| Applicable shielding gas | 一 | CO₂: 100 % CO₂, MAG: 80 ％ Ar and 20 % CO₂ |
Aluminum MIG: 100% Ar, Stainless steel MIG: 98 % Ar and 2% O₂ |
CO₂: 100 % CO₂, MAG: 80 % Ar and 20 % CO₂ |
| Applicable wire diameter | mm | 0.6 / 0.8 | 0.8 / 0.9 / 1.2 | |
| Applicable wire materials | ー | Mild steel | Aluminum / (Stainless steel) | Mild steel |
| Input power supply terminal | ー | Terminal block (M5 bolt fixing) | ||
| Output terminal | ー | Copper plate terminal (with M8 bolt) | ||
| External dimensions (width x depth x height) |
mm | 310 × 436 × 510 | ||
| Mass | kg | 50 | 47 | |
● View the required power supply capacity and cable thickness data
